Researched and written by Donny Maasland and Rindert Kramer
During penetration tests we sometimes encounter servers running software that use sensitive information as part of the underlying process, such as Microsoft’s System Center Orchestrator.
According to Microsoft, Orchestrator is a workflow management solution for data centers and can be used to automate the creation, monitoring and deployment of resources in your environment.1 This blogpost covers the encryption aspect of Orchestrator and new tools to decrypt sensitive information that is stored in the Orchestrator database.
Orchestrator, variables, encryption and SQL
In Orchestrator, it is possible to create variables that can be used in runbooks. One of the possibilities is to store credentials in these variables. These variables can then be used to authenticate with other systems. Runbooks can use these variables to create an authenticated session towards the target system and run all the steps that are defined in the runbook in the context of the credentials that are specified in the variable.
Information, such as passwords, that is of a sensitive nature can be encrypted by using encrypted variables. The contents of these variables are stored encrypted in the database when they are created and are decrypted when they are used in the runbooks. The picture below displays the dialog to create an encrypted variable.
Orchestrator uses the internal encryption functionality of Microsoft SQL server2 (MSSQL). The decryption keys are stored in the SYS database and have to be loaded in to the SQL session in order to decrypt data.
To decypt the data, we need the encrypted content first. The following query returns the encrypted content:
SELECT VARIABLES.value, objects.Name FROM VARIABLES INNER JOIN OBJECTS ON OBJECTS.UniqueID = VARIABLES.UniqueID;
If there are secret variables stored in the database, this will result in encrypted data, such as:
The data between
\`d.T.~De/ is the data we are interested in, which leaves us with the following string:
Please note that the
\`d.T.~De/ value might differ per data type.
Since this data is encrypted, the decryption key needs to be loaded in the SQL session. To establish this, we open an SQL session and run the following query:
OPEN SYMMETRIC KEY ORCHESTRATOR_SYM_KEY DECRYPTION BY ASYMMETRIC KEY ORCHESTRATOR_ASYM_KEY;
This will load the decryption key into the SQL session.
Now we run this string against the
decryptbykey function in MSSQL3 to decrypt the content with the encryption key that was loaded earlier in the SQL session. If successful, this will result in a
varbinary object that we need to convert to
nvarchar for human readable output.
The complete SQL query will look like this:
SELECT convert(nvarchar, decryptbykey(0x00F04DA615688A4C96C2891105226AE90100000059A187C285E8AC6C1090F48D0BFD2775165F9558EAE37729DA43BE92AD133CF697D2C5CC1E6E27E534754099780A0362C794C95F3747A1E65E869D2D43EC3597));
Executing this query will return the unencrypted value of the variable, as can be seen in the following screenshot.
Automating the process
Fox-IT created a script that automates this process. The script queries the secrets and decrypts them automatically. The result of the script can be seen in the screenshot below.
The script can be downloaded from Fox-IT’s Github repository: https://github.com/fox-it/Decrypt-OrchestratorSecretVariables

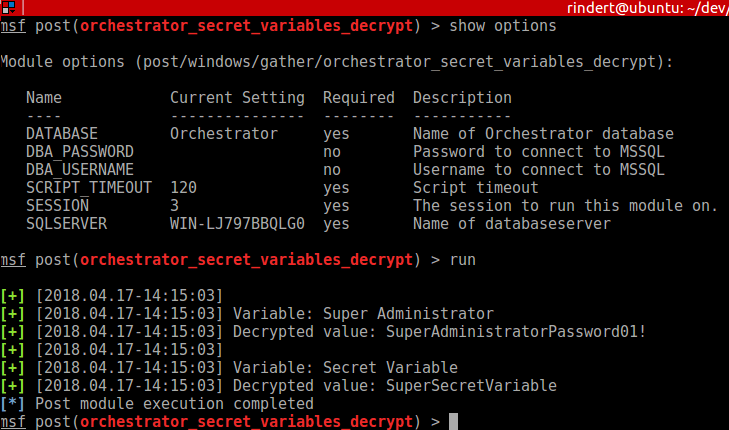

Fox-IT also wrote a Metasploit post module to run this script through a meterpreter.
The Metasploit module supports integrated login. Optionally, it is possible to use MSSQL authentication by specifying the username and password parameters. By default, the script will use the ‘Orchestrator’ database, but it is also possible to specify another database with the database parameter. Fox-IT did a pull request to add this module to Metasploit, so hopefully the module will be available soon. The pull request can be found here: https://github.com/rapid7/metasploit-framework/pull/9929
