Introducing Team Foundation Server decryption tool

During penetration tests we sometimes encounter servers running software that use sensitive information as part of the underlying process, such as Microsoft’s Team Foundation Server (TFS). TFS can be used for developing code, version control and automatic deployment to target systems. This blogpost provides two tools to decrypt sensitive information that is stored in the TFS database.

Decrypting TFS secrets

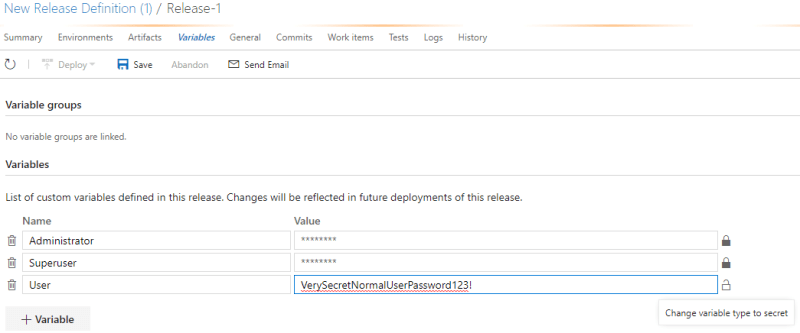

Within Team Foundation Server (TFS), it is possible to automate the build, testing and deployment of new releases. With the use of variables it is possible to create a generic deployment process once and customize it per environment.1 Sometimes specific tasks need a set of credentials or other sensitive information and therefor TFS supports encrypted variables. With an encrypted variable the contents of the variables is encrypted in the database and not visible for the user of TFS.


However, with the correct amount of access rights to the database it is possible to decrypt the encrypted content. Sebastian Solnica wrote a blogpost about this, which can be read on the following link:

Fox-IT wrote a PowerShell script that uses the information mentioned in the blogpost. While the blogpost mainly focused on the decryption technique, the PowerShell script is built with usability in mind. The script will query all needed values and display the decrypted values. An example can be seen in the following screenshot:


The script can be downloaded from Fox-IT’s Github repository:

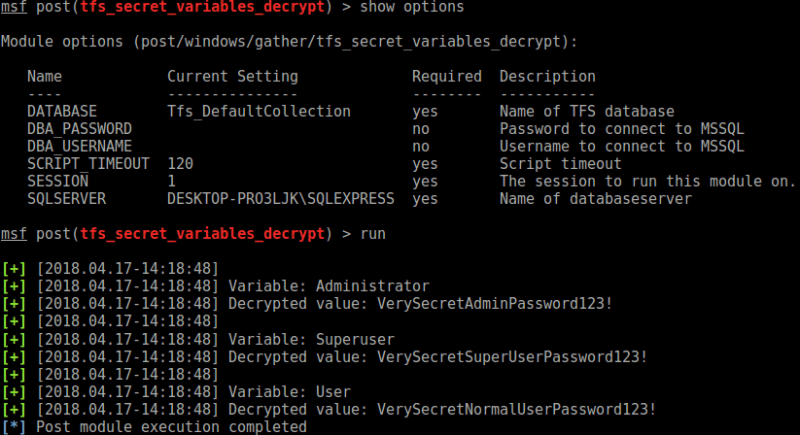

It is also possible to use the script in Metasploit. Fox-IT wrote a post module that can be used through a meterpreter session. The result of the script can be seen in the screenshot below.


There is a pull request pending and hopefully the module will be part of the Metasploit Framework soon. The pull request can be found here:
